Electric FIRED Waste water evaporator
Compact. Clean. Ideal for Low-Capacity Effluent Treatment.
Our Electric Wastewater Evaporator offers a reliable, low-maintenance solution for reducing industrial effluent volumes — without using oil, gas, or steam. Powered by electric immersion heaters, it is ideal for small-scale operations, indoor use, and emission-sensitive zones.
Due to higher electricity consumption, this model is designed for low capacities only. We have electric evaporators up to 100 LPH maximum capacity.
Description | Details |
Name | Thermal Waste Water Evaporator |
Operation | Automatic |
Available Evaporation Rate | 25 LPH , 50 LPH & 100 LPH |
Heat Sources | Immersion Type of Heaters
|
Heaters | SS 316 -corrosion-resistant |
Power Requirement | Three Phase |
Inner Tank Construction | SS 304/316 -corrosion-resistant |
Heat Exchanger Construction | SS 304/316 -corrosion-resistant |
Tank Cover Construction | MS Powder Coated |
Exhaust Blower | 01 Hp 3 Phase Blower |
Insulation | Cerawool 25mm |
Vent Stack | Dia 170 mm |
PLC Control Panel With HMI | Fintek Make Electrical Panel |
Sensors | Temperature Sensor & Level Sensor |
Feed Pump | Standard make |
Piping’s, Drain Port. | Available |
Electrical Components, Cables | Branded Make |
Working Hours | Up to 20 hrs. |

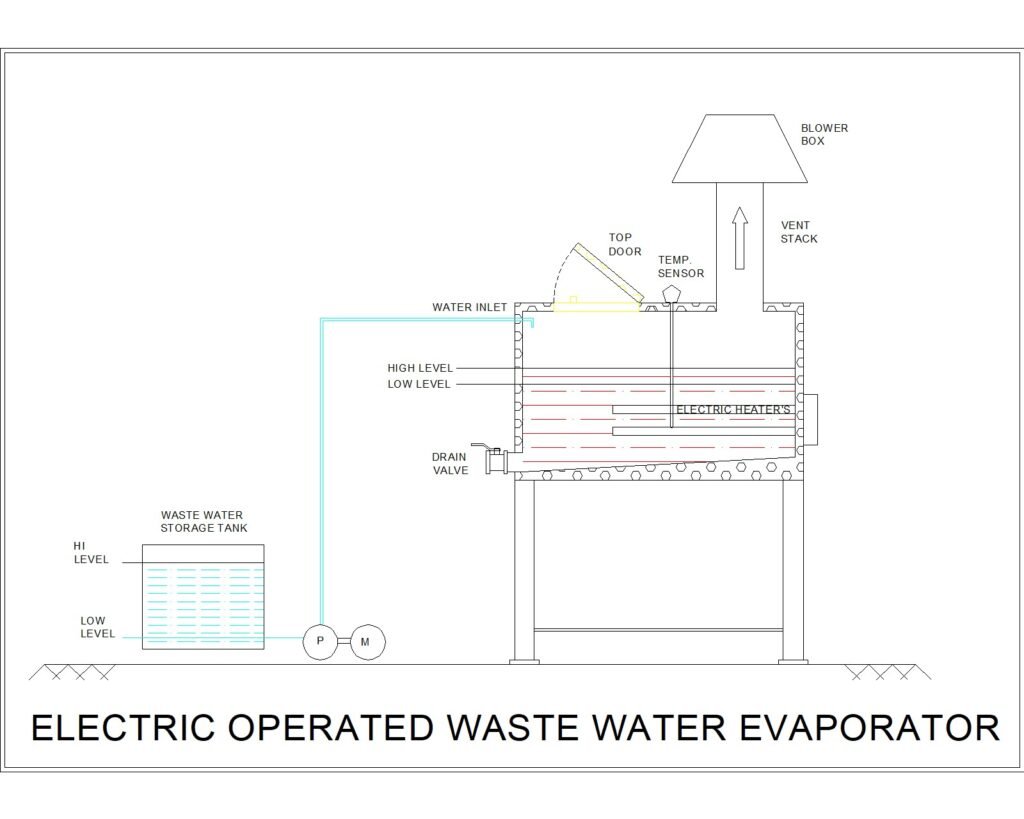

How It Works
1. Automatic Water Inlet
Wastewater is pumped from the storage tank to the evaporator chamber. High-level and low-level sensors manage water input for safe operation.
2. Electric Heating
Submerged electric heaters heat the wastewater to its boiling point. Water vapor is released through the vent stack.
3. Vapor Discharge
A blower box assists in venting vapor out of the system, ensuring faster evaporation.
4. Sludge Removal
Concentrated waste is removed through the top inspection door and drained via a dedicated valve.
5. Temperature Control
A built-in sensor maintains temperature precision and protects heaters from overheating.
Ideal For:
- RO reject and rinse water
- Coolants and cutting fluid waste
- Plating and electrochemical wastewater
- Paint booth sludge
- Small effluent volumes from chemical/pharma units
Why Choose Electric?
- No fuel handling or emissions
- Plug-and-play system
- Perfect for compact areas
- Suitable for low-volume effluent treatment (Up to 100 LPH)
Key Features
- Electric immersion-type heaters
- Top inspection door for cleaning and maintenance
- Drain valve for sludge removal
- Automatic Hi/Low level sensors
- Vent stack with blower box
- Skid-mounted compact structure
- Flame-Free Evaporation Technology.
