Compact. Clean. Ideal for Low-Capacity Effluent Treatment.
Our Electric Wastewater Evaporator offers a reliable, low-maintenance solution for reducing industrial effluent volumes — without using oil, gas, or steam. Powered by electric immersion heaters, it is ideal for small-scale operations, indoor use, and emission-sensitive zones.
Due to higher electricity consumption, this model is designed for low capacities only. We have electric evaporators up to 100 LPH maximum capacity.

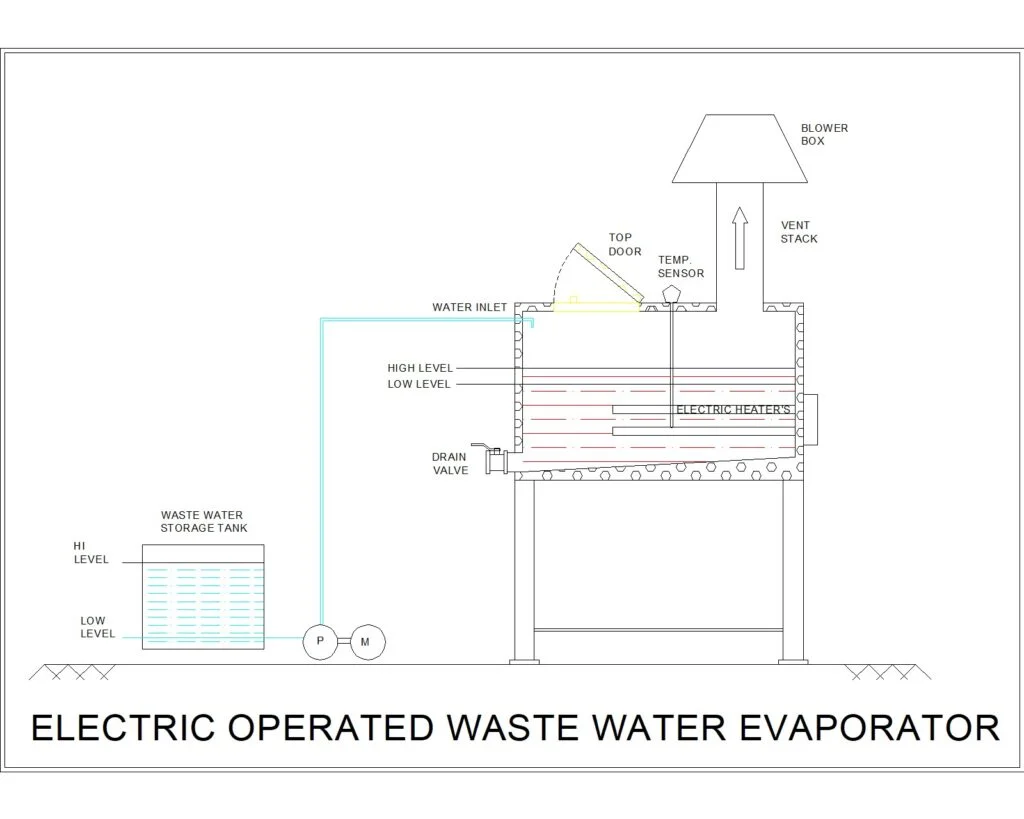

How It Works
1. Automatic Water Inlet
Wastewater is pumped from the storage tank to the evaporator chamber. High-level and low-level sensors manage water input for safe operation.
2. Electric Heating
The clean water vapor exits through the vent stack, while heavy contaminants and sludge remain in the chamber.
3. Vapor Discharge
After a cycle, the concentrated waste is drained from the bottom through a drain valve, leaving behind only a fraction of the original wastewater.
4. Sludge Removal
The system can recover clean water from wastewater, which can be reused in industrial processes, reducing the demand on fresh water resources. This is optional.
5. Temperature Control
A built-in sensor maintains temperature precision and protects heaters from overheating
Ideal For:
- RO reject and rinse water
- Coolants and cutting fluid waste
- Plating and electrochemical wastewater
- Paint booth sludge
- Small effluent volumes from chemical/pharma units
Why Choose Electric?
- No fuel handling or emissions
- Plug-and-play system
- Perfect for compact areas
- Suitable for low-volume effluent treatment (Up to 100 LPH)

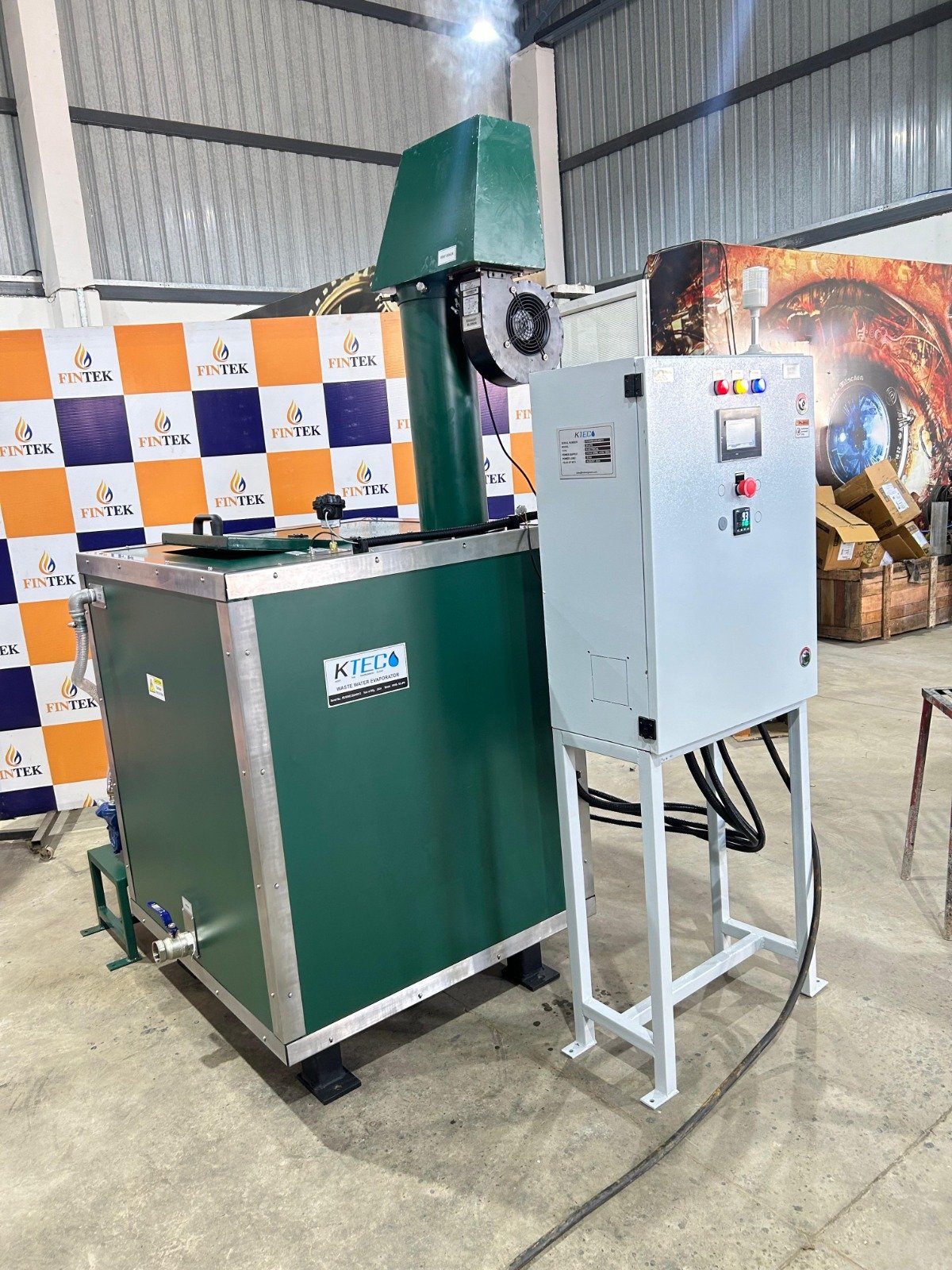

Key Features
- Electric immersion-type heaters
- Top inspection door for cleaning and maintenance
- Drain valve for sludge removal
- Automatic Hi/Low level sensors
- Vent stack with blower box
- Skid-mounted compact structure
- Flame-Free Evaporation Technology.
Technical Specifications
| Description | Details |
|---|---|
| Name | Thermal Waste Water Evaporator |
| Operation | Automatic |
| Available Evaporation Rate | 25 LPH to 100 LPH |
| Heat Sources | Electric immersion-type heaters |
| Power Requirement | Three Phase |
| Inner Tank Construction | SS 304/316 -corrosion-resistant |
| Heat Exchanger Construction | SS 304/316 -corrosion-resistant |
| Tank Cover Construction | MS Powder Coated |
| Insulation | Cerawool 25mm |
| Vent Stack | 400 mm Length 500 mm. |
| PLC Control Panel With HMI | Fintek Make Electrical Panel |
| Sensors | Temperature Sensor & Level Sensor |
| Feed Pump | Standard make |
| Blower | Available. |
| Inlet Port,Piping's, Drain Port, Top Inspection Door. | Available |
| Working Hours | Up to 20 hrs. |
